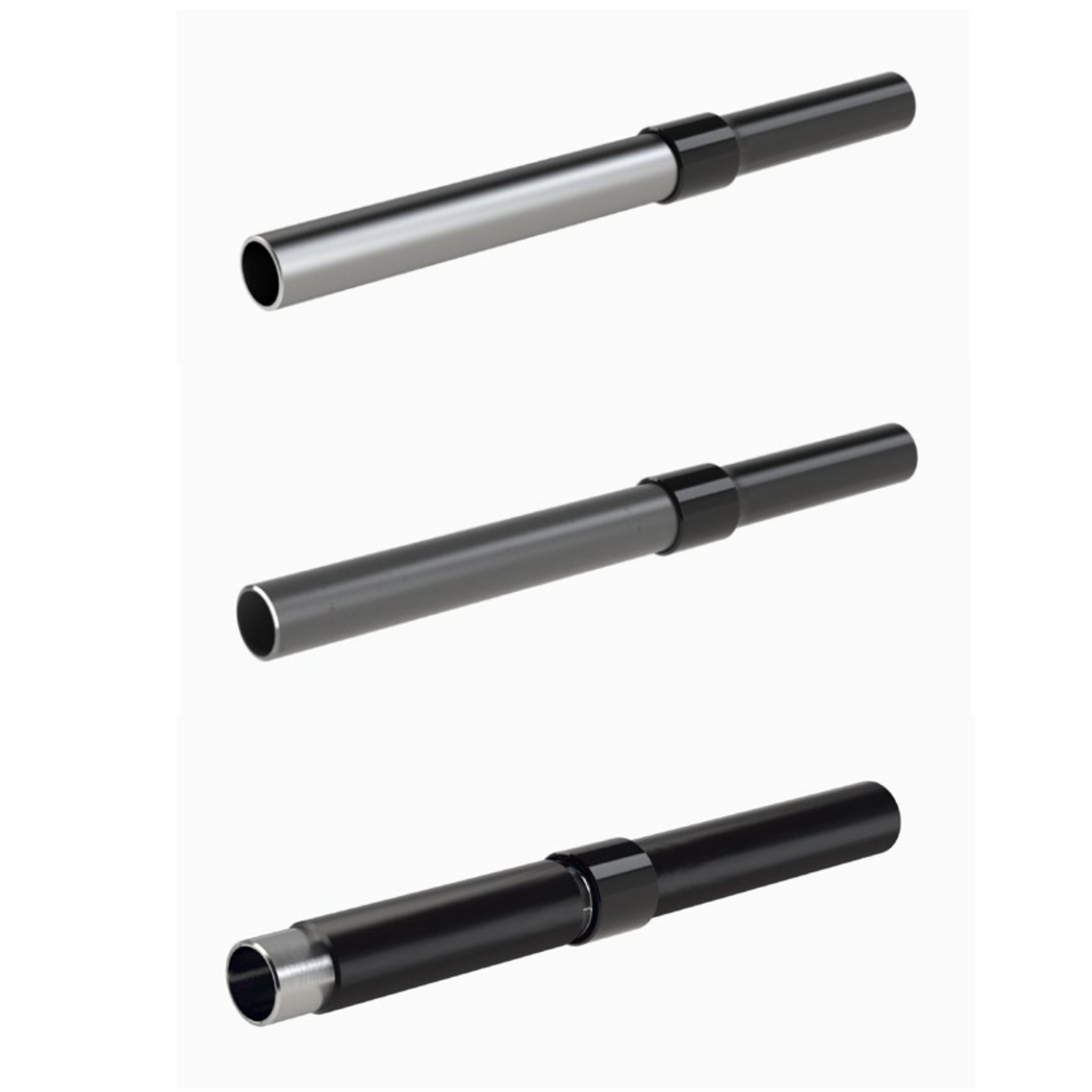

CONNECTORS OR TRANSITION JOINTS

Available in 3 versions:

PE/GALVANIZED STEEL WELDING

MATERIALS:

- Steel tube EN 10255 galvanized according to
EN 10240-A1 (up to D.180)
- UNI EN 10255 galvanized steel tube
cold (from D. 200 to D.630)
- PE 100 S5 SDR 11 (PN 16) shank*

REGULATORY REFERENCES:

• UNI EN 1555 – 3
• UNI 9736
• ISO 17885
• UNI 9034

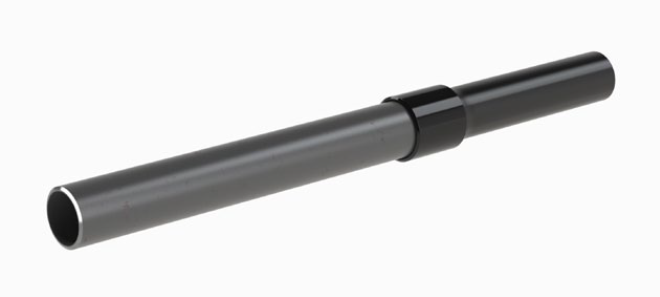

PE/CARBON STEEL WELDING

- Steel tube L235 GA according to EN 10208-1*
- PE100 S5 SDR 11 (PN 16) shank**

REGULATORY REFERENCES:
• UNI EN 1555 – 3
• UNI 9736
• ISO 17885
• UNI 9034

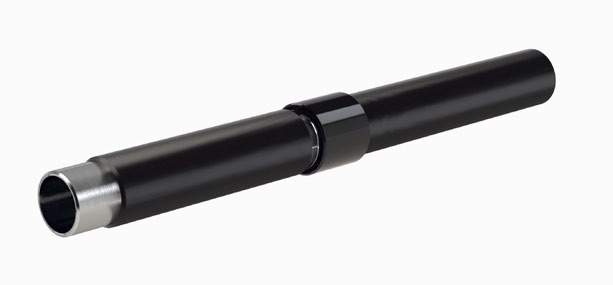

PE/COATED STEEL WELDING

- UNI EN 10255 coated steel tube
according to UNI 9099 - Polycoat
- PE100 S5 SDR 11 (PN 16) shank*

REGULATORY REFERENCES:
• UNI EN 1555 – 3
• UNI 9736
• ISO 17885
• UNI 9034

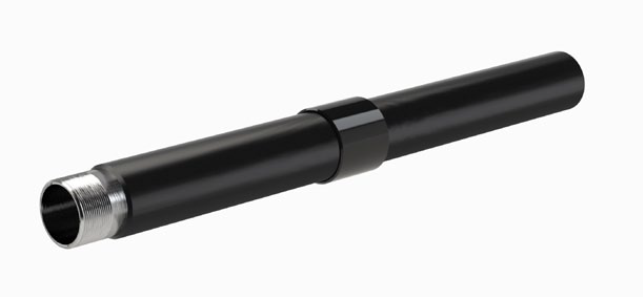

PE/STEEL COATED THREADED

MATERIALS:
- UNI EN 10255 coated steel tube
according to UNI 9099 - Polycoat
- External thread (tapered male)
according to EN10226-1 (R)
- PE100 S5 SDR 11 (PN 16) shank*

REGULATORY REFERENCES:
• UNI EN 1555 – 3
• UNI 9736
• ISO 17885
• UNI 9034
