EXHAUST VENTS AND TUBULAR SUPPORTS FOR GAS PIPELINES
EXHAUST VENTS AND TUBULAR SUPPORTS FOR GAS PIPELINES
EM SERIES - EXHAUST VENTS
Materials
Exhaust body in UNI EN aluminium alloy
1706 BC - 46100 DF die casting.
Flame arrester plate, between tube and body
exhalation valve, in AISI 316 stainless steel.
Exhalation body locking grains
to the AISI 304 stainless steel tube protected
from plastic caps. Protection
external body exhalation by paint
synthetic and oven color yellow gold RAL
1004.
Applications
For gas pipelines in crossings
road or railway, for venting manholes or
small underground cabins with valves
safety.
| DIAMETER |
DESCRIPTION |
ACRONYM |
| 1"1/2 (49mm) |
Exhalation head complete with flame arrester. Medium and low pressure. |
EM48 |
| 2" (61mm) | Exhalation head complete with flame arrester. Medium and low pressure. | EM60 |
| 3" (89mm) | Exhalation head complete with flame arrester. High pressure. | EM89 |

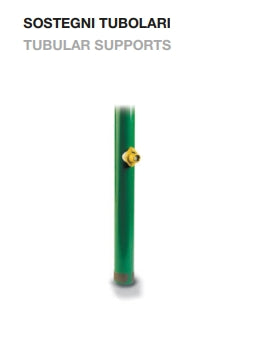

TUBULAR SUPPORTS
Materials
Support tube in FE33 UNI EN 10217-1.
External support tube protection
by lamination in RAL green colour
6010.
Characteristics
Device for controlling exhalations
quick opening with access via
special profile key removable in
closed position (max. passage diam.
probe 10 mm).
| PIPE DIAMETER |
TUBE LENGTH |
ACRONYM |
| 1"1/2 | 650mm | T1/48/V |
| 1"1/2 | 2250mm | T2/48/V |
| 2" | 650mm | T1/60/V |
| 2" | 2250mm | T2/60/V |
| 3" | 650mm | T1/89/V |
| 3" | 2250mm | T2/89/V |

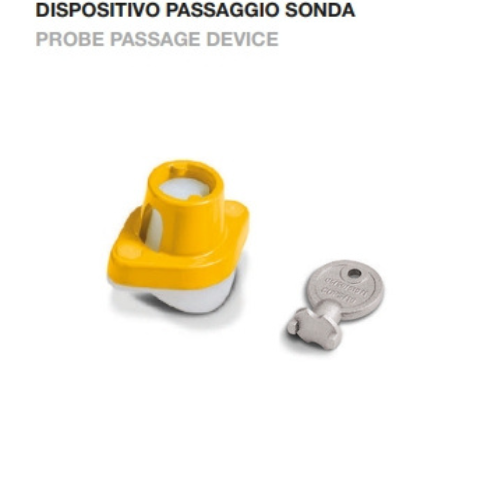

PROBE PASSAGE DEVICE
Materials
Body in UNI EN 1706 aluminium alloy
AC - 46100 DF die casting. Cylinder ed
adapter to polyamide resin tube
6.6. Painting yellow RAL 1004.
Complete with key.
Characteristics
Maximum probe passage diameter 10
mm. External fixing to the tube.
| DIAMETER |
ACRONYM |
| 1"1/2 - 2" | DPS10/48-60 |
| 3" | DPS10/89 |
