RACI SPACER COLLARS
RACI SPACER COLLARS

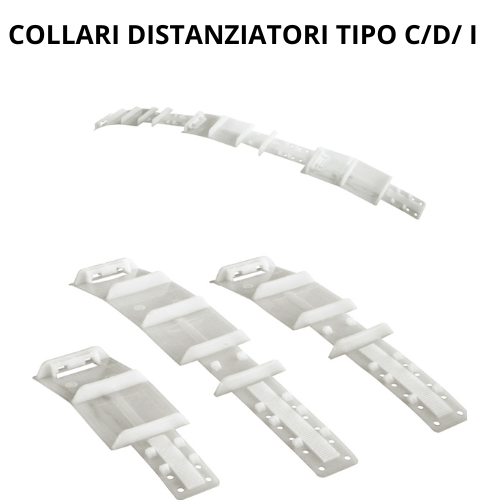

SPACER COLLARS TYPE C /D/ I
MOD. 13100 /C | PIPES DN 40-200 | H. 15 mm|
MOD. 13100 /D | PIPES DN 40-200 | H. 15 mm|
MOD. 13100 /I | PIPES DN 40-200 | H. 15 mm|
CHARACTERISTICS :
- Modular system with sectional crowns that allows the spacers to cover a wide range of tube diameters, thus also reducing storage quantities.
- Easily assembled by manually fixing one element to another.
- Fixing by means of toothed ends for efficient adaptation to a wide range of pipe diameters.
- Made entirely of high-density polyethylene (HDPE), no metal connecting parts are required.
- Low friction coefficient which facilitates the insertion of the conduit into the jacket pipe.
- Designed and tested to ensure continuous and long-lasting support for the conduit pipe and its contents.
- They guarantee constant protection along the entire circumference of the driven pipe.
- They guarantee long-lasting protection against corrosion.
- They can be installed on steel, concrete, iron or plastic pipes.
MATERIALS - HDPE:
Yield strength*:
≥ 25 N/mm2 (Tests in accordance with UNI EN ISO 527-2)
Elongation at break*:
> 200% (Tests according to UNI EN ISO 527-2)
Shore D hardness:
64 - ASTM D 2240
Minimum operating temperature:
- 20°C (for applications below 5°C contact Raci)
Minimum storage temperature:
- 5°C (for applications below 5°C contact Raci)
Dielectric strength:
> 37 kV/mm - ASTM D 149/64
UV stabilization:
Good

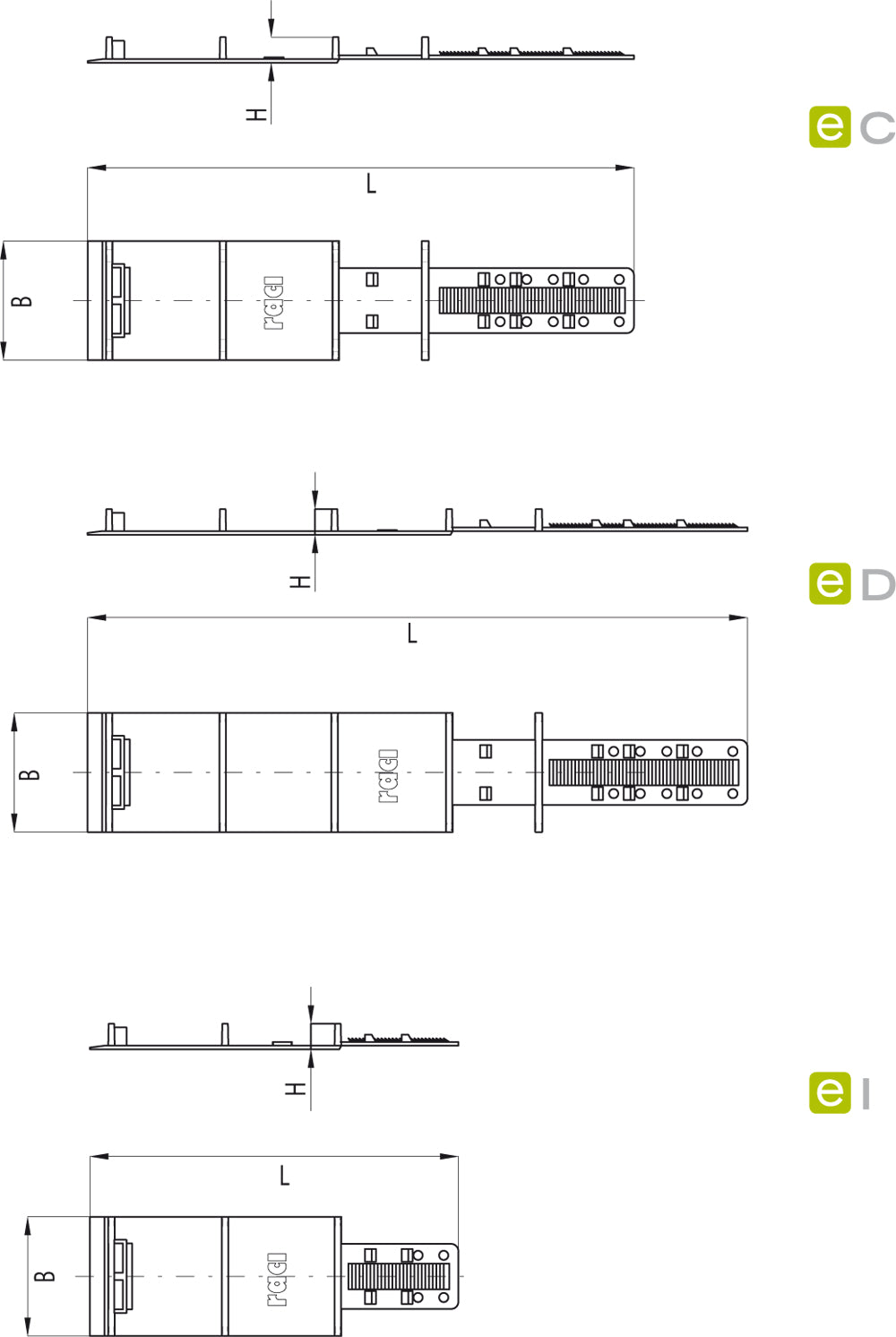

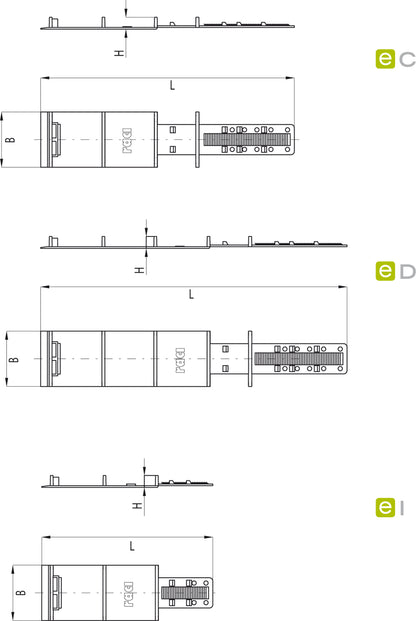

TYPE |
LENGTH mm |
WIDTH (B) mm |
HEIGHT (H) mm |
LOAD CAPACITY (kg) |
C | 180 - 250 | 63 | 15 | 200 |
D | 240 - 310 | 63 | 15 | 200 |
THE | 130 - 160 | 63 | 15 | 200 |
EXTERNAL CONDUCT OF |
COLLAR ELEMENTS (PZ) |
RECOMMENDED DISTANCE BETWEEN RINGS (H element) |
ø MIN | ø MAX | C | D | THE | GAS mt | WATER mt |
42 | 52 | - | - | 1 | 1.5 | 1.5 |
58 | 80 | 1 | - | - | 1.5 | 1.5 |
81 | 99 | - | 1 | - | 1.5 | 1.0 |
100 | 133 | 1 | - | 1 | 1.5 | 1.0 |
134 | 170 | 1 | 1 | - | 1.0 | 1.0 |
171 | 200 | - | 2 | - | 1.0 | 1.0 |

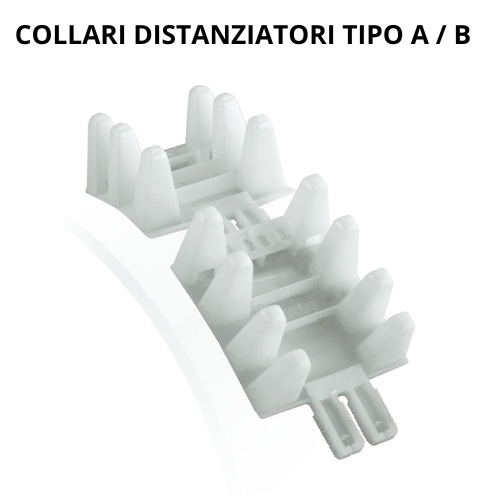

SPACER COLLARS TYPE A/B
MOD. 13100 /A | PIPES DN 50-250 | H. 19-36-50 mm|
MOD. 13100 /B | PIPES DN 50-250 | H. 19-36-50
- Modular system with sectional crowns that allows the spacers to cover a wide range of tube diameters, thus also reducing storage quantities.
- Easily assembled by manually fixing one element to another.
- Fixing by means of toothed ends for efficient adaptation to a wide range of pipe diameters.
- Made entirely of high-density polyethylene (HDPE), no metal connecting parts are required.
- Low friction coefficient which facilitates the insertion of the conduit into the jacket pipe.
- Designed and tested to ensure continuous and long-lasting support for the conduit pipe and its contents.
- They guarantee constant protection along the entire circumference of the driven pipe.
- They guarantee long-lasting protection against corrosion.
- They can be installed on steel, concrete, iron or plastic pipes.
MATERIALS - HDPE:
Yield strength*:
≥ 25 N/mm2 (Tests in accordance with UNI EN ISO 527-2)
Elongation at break*:
> 200% (Tests according to UNI EN ISO 527-2)
Shore D hardness:
64 - ASTM D 2240
Minimum operating temperature:
- 20°C (for applications below 5°C contact Raci)
Minimum storage temperature:
- 5°C (for applications below 5°C contact Raci)
Dielectric strength:
> 37 kV/mm - ASTM D 149/64
UV stabilization:
Good

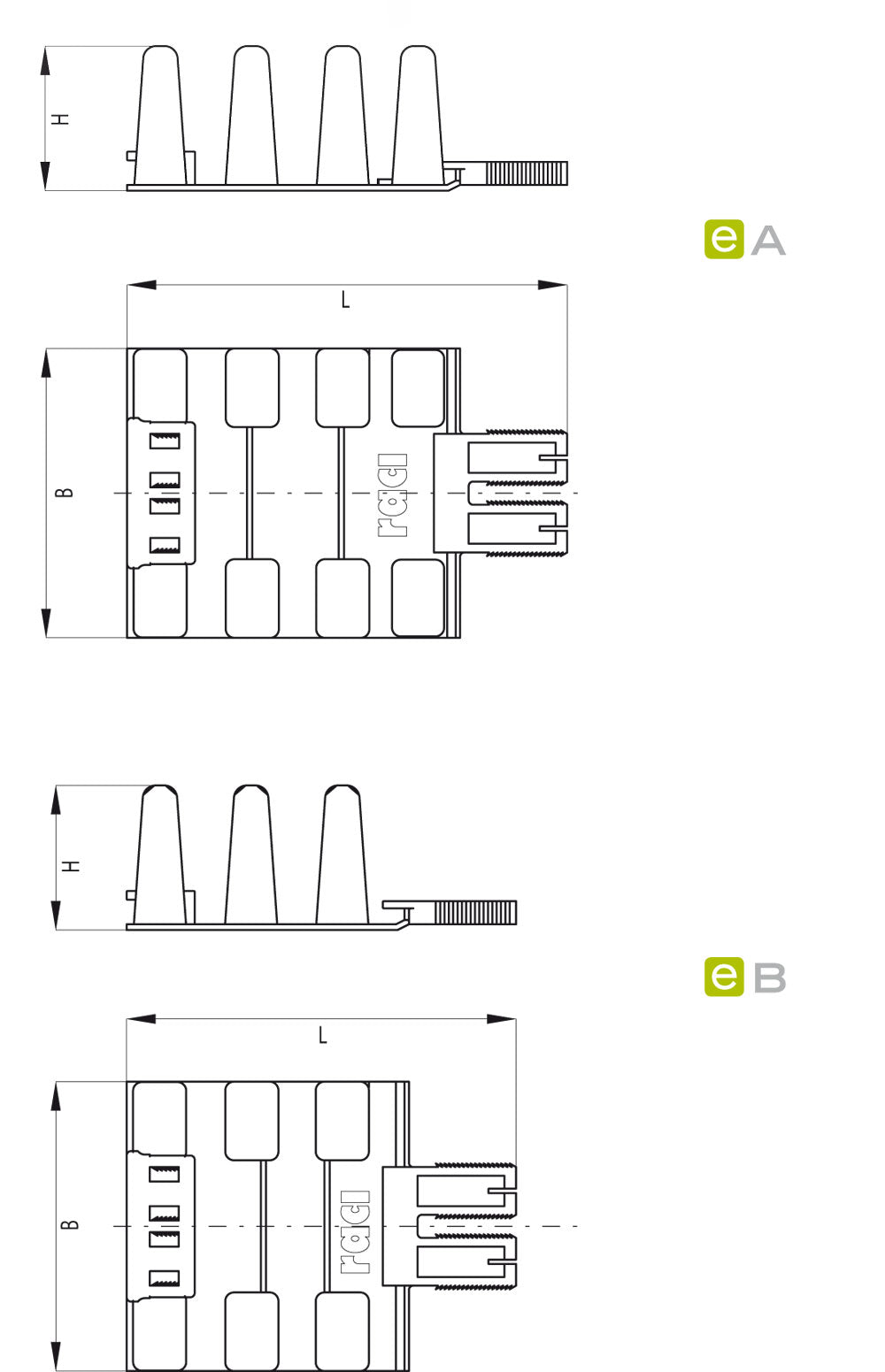

TYPE | USEFUL LENGTH mm | WIDTH (B) mm | HEIGHT (H) mm | LOAD CAPACITY (kg) |
TO | 113 - 128 | 100 | 19 -36 -50 | 180 |
B | 95 - 110 | 100 | 19 -36 -50 | 180 |
EXTERNAL CONDUCT OF | COLLAR ELEMENTS (PZ) | RECOMMENDED DISTANCE BETWEEN RINGS (H element) |
ø MIN |
ø MAX |
TO | B | GAS mt | WATER mt |
55 | 64 | - | 2 | 2.0 | 2.0 |
60 | 70 | 1 | 1 | 2.0 | 2.0 |
68 | 77 | 2 | - | 2.0 | 2.0 |
85 | 98 | - | 3 | 2.0 | 2.0 |
90 | 106 | 1 | 2 | 2.0 | 1.5 |
98 | 116 | 3 | - | 2.0 | 1.5 |
118 | 132 | - | 4 | 2.0 | 1.5 |
125 | 140 | 1 | 3 | 2.0 | 1.5 |
140 | 158 | 4 | - | 1.5 | 1.5 |
158 | 180 | 2 | 3 | 1.5 | 1.5 |
178 | 200 | 5 | - | 1.5 | 1.5 |
200 | 240 | - | 7 | 1.5 | 1.5 |
215 | 242 | 6 | - | 1.5 | 1.5 |
239 | 272 | 6 | 1 | 1.5 | 1.0 |
245 | 281 | 7 | - | 1.5 | 1.0 |

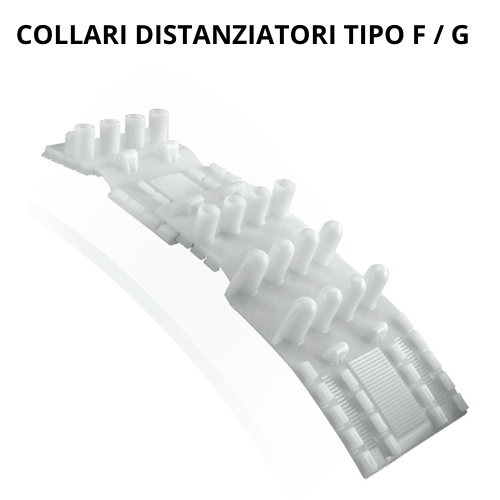

SPACER COLLARS TYPE F/G
MOD. 13100 /F | PIPES DN 100-500 | H. 25-41-60-75 mm|
MOD. 13100 /G | PIPES DN 100-500 | H. 25-41-60 mm|
- Modular system with sectional crowns that allows the spacers to cover a wide range of tube diameters, thus also reducing storage quantities.
- Easily assembled by manually fixing one element to another.
- Fixing by means of toothed ends for efficient adaptation to a wide range of pipe diameters.
- Made entirely of high-density polyethylene (HDPE), no metal connecting parts are required.
- Low friction coefficient which facilitates the insertion of the conduit into the jacket pipe.
- Designed and tested to ensure continuous and long-lasting support for the conduit pipe and its contents.
- They guarantee constant protection along the entire circumference of the driven pipe.
- They guarantee long-lasting protection against corrosion.
- They can be installed on steel, concrete, iron or plastic pipes.
- Heights 25 and 41mm approved in accordance with the SNAM RETE GAS protocol (GASD A 09.01.06 and GASD C 09.06.00 specifications).
- Clamping with C90 type collet for heights up to 75mm.
MATERIALS - HDPE:
Yield strength*:
≥ 25 N/mm2 (Tests in accordance with UNI EN ISO 527-2)
Elongation at break*:
> 200% (Tests according to UNI EN ISO 527-2)
Shore D hardness:
64 - ASTM D 2240
Minimum operating temperature:
- 20°C (for applications below 5°C contact Raci)
Minimum storage temperature:
- 5°C (for applications below 5°C contact Raci)
Dielectric strength:
> 37 kV/mm - ASTM D 149/64
UV stabilization:
Good

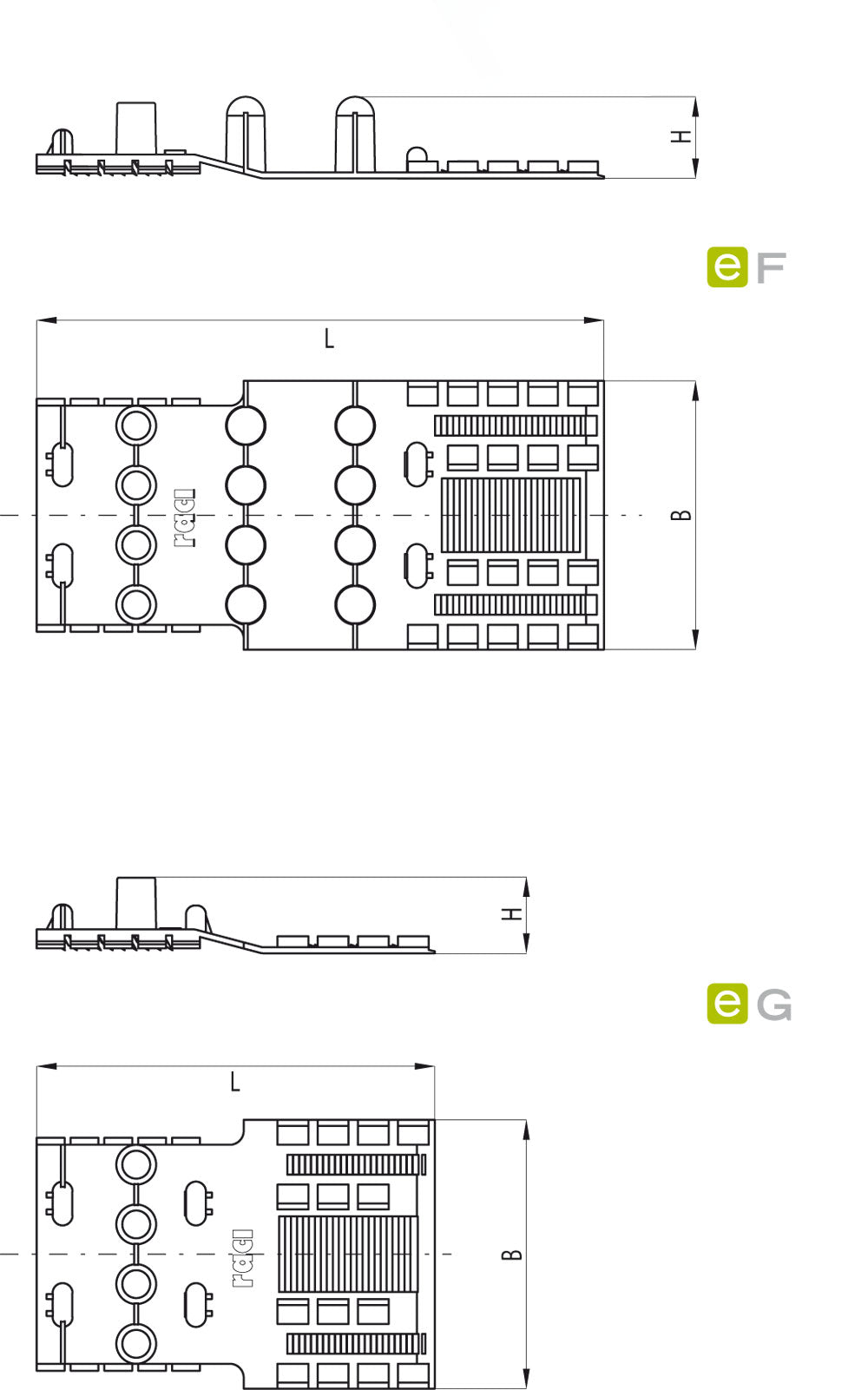

TYPE | USEFUL LENGTH mm | WIDTH (B) mm | HEIGHT (H) mm | LOAD CAPACITY (kg) |
F | 197 - 237 | 130 | 25 -41 -60 -75 | 500 |
G | 91 - 129 | 130 | 25 -41 -60 | 500 |
EXTERNAL CONDUCT OF | COLLAR ELEMENTS (PZ) | RECOMMENDED DISTANCE BETWEEN RINGS (H element) |
ø MIN | ø MAX | F | G | GAS mt | WATER mt |
92 | 115 | 1 | 1 | 2.5 | 2.5 |
116 | 152 | 2 | - | 2.5 | 2.5 |
153 | 188 | 2 | 1 | 2.5 | 2.0 |
189 | 224 | 3 | - | 2.5 | 2.0 |
225 | 260 | 3 | 1 | 2.0 | 2.0 |
261 | 295 | 4 | - | 2.0 | 2.0 |
296 | 313 | 4 | 1 | 2.0 | 2.0 |
314 | 376 | 5 | - | 2.0 | 1.5 |
377 | 446 | 6 | - | 2.0 | 1.5 |
477 | 528 | 7 | - | 2.0 | 1.5 |
