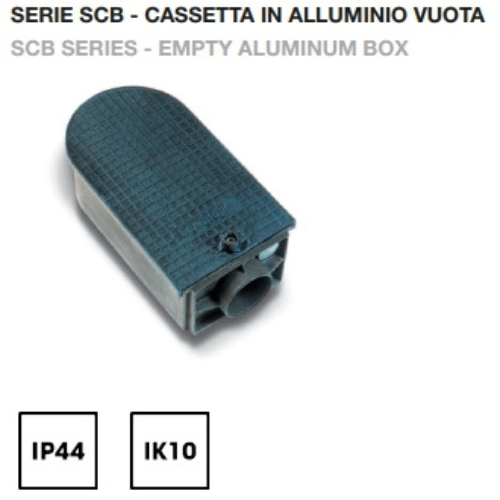

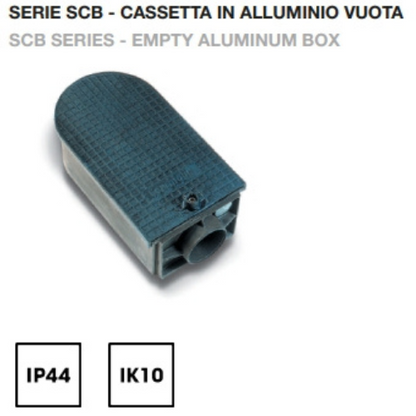

SCB SERIES - EMPTY ALUMINUM BOX
Materials
In aluminium alloy UNI EN 1706 AC -
46100 DF die casting.
Oven-baked epoxy paint color
grey RAL 7000.
Characteristics
Lid with drawstring fastening
Stainless steel Allen screw closure
AISI 304.
Materials intended for exclusive use in
systems with voltage lower than 50 Vdc.
With bottom opening for assembly
of the tubular support with non-ended
threaded.
Applications
For outdoor use, in protection systems
cathode, potential sockets, voltage points
electrical measurement on metal conduits.
Degree of protection CEI EN 60529
Impact resistance CEI EN 62262
EXTERNAL DIMENSIONS |
INTERNAL DIMENSIONS |
B | H | P | B | H | P | PIPE DIAMETER |
ACRONYM |
142 | 266 | 99 | 118 | 214 | 80 | 1"1/2 | SCB2R/F |

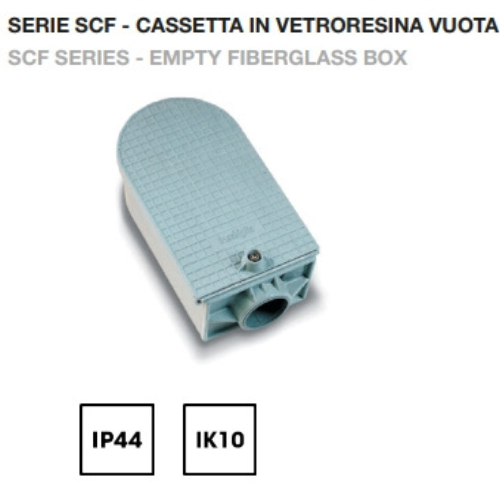

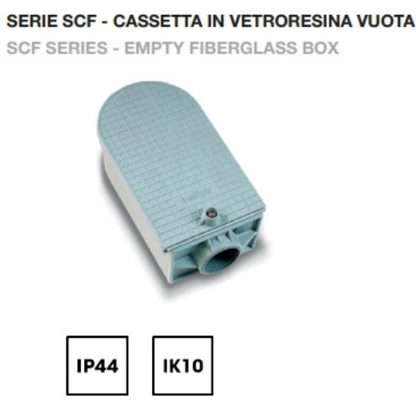

SCF SERIES - EMPTY FIBERGLASS BOX
Materials
Printed in SMC (fiberglass) color
grey RAL 7040.
Characteristics
Lid with drawstring fastening
closure with steel Allen screws
AISI 304 stainless steel. With lower inlet
for mounting on tubular supports with
unthreaded end.
Applications
For outdoor use, in protection systems
cathode, potential sockets, voltage points
electrical measurement on metal conduits.
Materials intended for exclusive use in
systems with voltage lower than 50 Vdc
EXTERNAL DIMENSIONS |
INTERNAL DIMENSIONS |
B |
H |
P |
B |
H |
P |
PIPE DIAMETER |
ACRONYM |
122 | 211 | 76 | 98 | 188 | 58 | 1" | SCF1/F |
144 | 268 | 100 | 120 | 215 | 81 | 1"1/2 | SCF2/F |

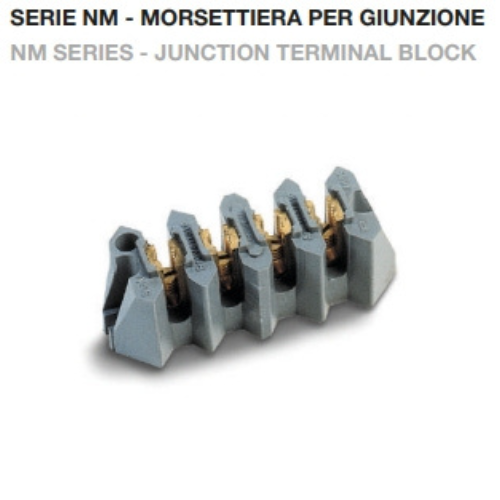

NM SERIES - TERMINAL BLOCK FOR JUNCTION
Through-hole clamps and grub screw
brass clamping UNI EN 12165
anti-loosening toothed thread
saw.
Materials
Insulating base printed in chloride
rigid polyvinyl (PVC).
Applications/Installations
For joints and branches with single-core cables, even from passing lines.
Degree of protection CEI EN 60529
B |
H |
P |
N.POLI |
NOMINAL SECTION mm² |
N. ROADS FOR POLE |
ACRONYM |
102 | 37 | 33 | 4 | 16 | 1 |
NM/416 |

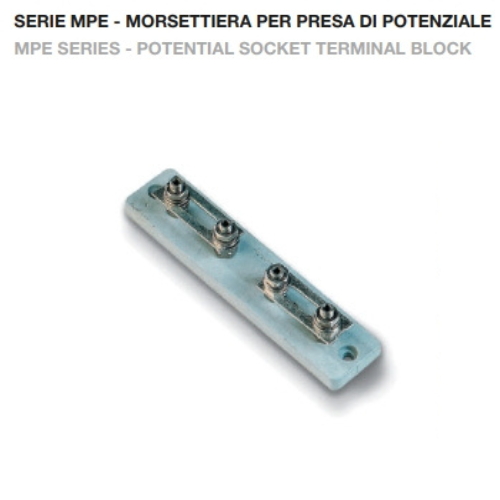

MPE SERIES - TERMINAL BLOCK FOR POTENTIAL TAP
Materials
Insulating base printed in
SMC(fiberglass).
Characteristics
M8 AISI Stainless Steel Bolt Clamps
304 with Ø 4 socket for measuring pins.
Applications
For potential taking on pipes for
instantaneous and recorded measurements with or without
reference electrode.
Terminal block with n. 2-3 poles
Complete with slide parallel bridge
in tinned copper.
Terminal block with 4 poles
Complete with two parallel jumpers
Tinned copper slider
B |
H |
P |
N.POLI |
NOMINAL SECTION mm² |
ACRONYM |
40 | 180 | 27 | 2 | 25 | MPE/PP2 |
40 | 180 | 27 | 4 | 25 |
MPE/PP4 |

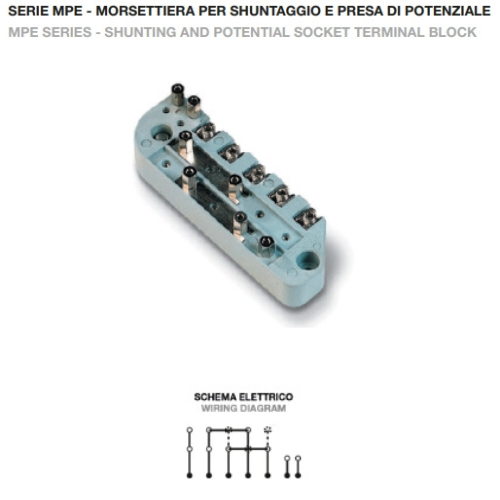

MPE SERIES - TERMINAL BLOCK FOR SHUNTING AND POTENTIAL TAKING
Materials
SMC molded insulating base
(fiberglass). Brass clamps (OT58 -
UNI EN 12165) printed and nickel-plated. Grains
of nickel-plated steel clamping. Bridges
parallel furniture in nickel-plated brass.
Characteristics
Brass bridge clamping columns
nickel-plated with Ø 4 socket for grafting
instruments. With the bridges and the columns
all connections are possible in
parallel on the input terminals.
Applications
For active cathodic protection positions.
For potential sockets for measurements
electrical and interference checks
and insulation on the pipes. For
electrical connection between multiple pipes
for extension of cathodic protection
or for measuring and controlling interference
mutual, as well as for electrical measurements.
For shunting of dielectric joints.
B |
H |
P |
N.POLI | NOMINAL SECTION mm² |
ACRONYM |
64 | 197 | 41 | 5 | 16 |
MPE/IT527 |
