DELTA GAS SERVICE SRL

GAS FILTER CARTRIDGES SERIES G

GAS FILTER CARTRIDGES SERIES G

Filter septum in velvety metal mesh, nominal filtration degree 50 microns

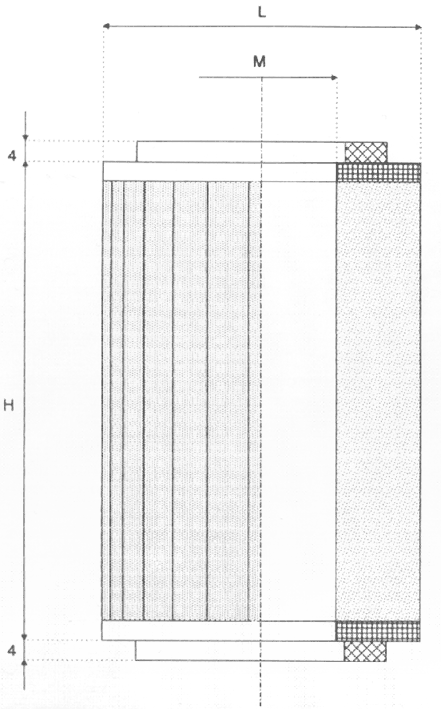

DIMENSIONS TABLE
PRODUCT The mm
M mm
H mm
G 0.5 20microns 80 35 112
G 0.5 80 35 112
G 1 95 50 157
G 1.5 120 69 202
G 2 165 86 252
G 2.5 200 110 275
G 3 252 138
 312
G 3.5 299 186 242
G 4 299 186 407
G 5 390 246 462
FILTERING SECTION VELVETY METAL NET
FILTRATION DEGREE
 50 NAMINABLE MICRONS
DINGHYS AND PAD
 ELECTRO-GALVANIZED STEEL
SUPPORT NETWORKS
 ALUMINUM
GASKETS
 IN PRESSED FELT
GLUE
 TWO-COMPONENT EPOXY
MAXIMUM OPERATING TEMPERATURE
 135°C
COLLAPSE PRESSURE
 2.5 Bar
MEASURE
