DELTA GAS SERVICE SRL

TEE UGUALI SENZA SALDATURA STD

TEE UGUALI SENZA SALDATURA STD

ASME B16.9

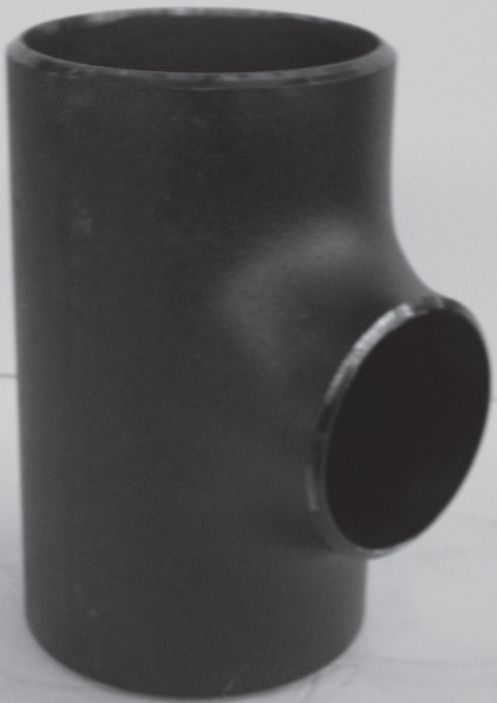

TEE UGUALI

POLLICI
 Ø EST.MM X SPESS.MM C/M C+C
1" 33.4 x 3.38 38 76
2" 60.3 x 3.91 76 106
3" 88.9 x 5.49 86 172
4" 114.3 x 6.02 105 210
5" 141.3 x 6.55 124 248
6" 168.3 x 7.11 143 286
8" 219.1 x 8.18 178 356

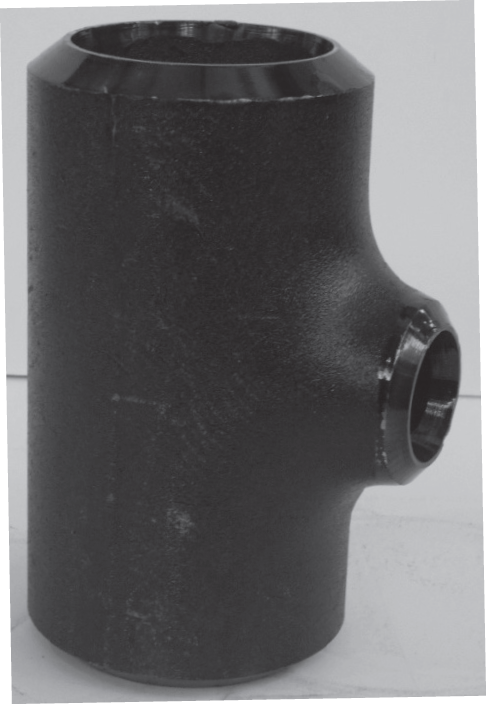

 TEE RIDOTTI


POLLICI
 Ø EST.MM X Ø INT.MM SP X SP
 C
 M
2" X 1"1/2
 60.30 X 48.30 3.91 X 3.68 64
 60
2"1/2 X 2"
 73.10 X 60.30 5.16 X 3.91 76 70
3" X 2"
 88.90 X 60.30 5.49 X 3.91 86
 76
4" X 2"
 114.30 X 60.30 6.02 X 6.30 105
 89
6" X 4" 168.30 X 114.30 7.11 X 6.02 143 130
